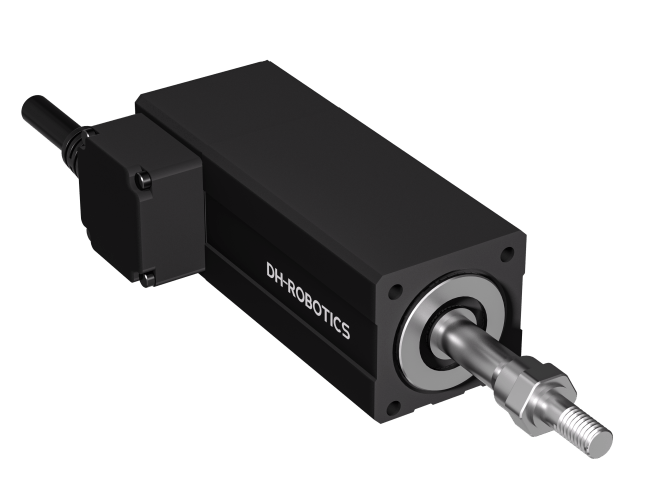

The RCEA series is a micro-sized rod-type electric cylinder developed and manufactured by DH-Robotics. It offers users an efficient linear motion solution with its compact size and excellent performance.
Contact Us
With a high-rigidity structural design and high-performance linear guide, the actuator supports a maximum horizontal load of up to 8 kg, outperforming similar products on the market in load capacity.
Featuring an integrated motor and driver-controller design, the overall structure is compact and streamlined. With a body width of only 35 mm, it supports multi-sided mounting and can be easily deployed in confined spaces.
Equipped with a high-performance servo motor and precision-ground screw, the slider achieves high-speed motion with a maximum speed of 300 mm/s, maximum acceleration of 0.3G, and repeat positioning accuracy of 0.01 mm, supporting various motion modes.
| RCEA-3M | ||||
|---|---|---|---|---|
 |
||||
| Total stroke | 30，50mm | |||
| Screw | 1mm | 2mm | 4mm | 6mm |
| Rated thrust | 200N | 100N | 50N | 30N |
| Max. speed | 50mm/s | 100mm/s | 200mm/s | 300mm/s |
| Max. acceleration | 2000mm/s² | 3000mm/s² | 3000mm/s² | 3000mm/s² |
| Max. weight capacity - horizontal | 8kg | 6kg | 3kg | 2kg |
| Max. weight capacity - vertical | 2kg | 1.5kg | 0.75kg | 0.5kg |
| Positioning repeatability | ±0.01mm | |||
| Idle stroke | Less than 0.1mm | |||
| Rod Diameter | \ | |||
| Weigh | 0.47kg（stroke 30mm） 0.55kg（stroke 50mm） |
|||
| Communication interface | External: Depending on the Selected Driver | |||
| Rated voltage | 24 V DC ±10% | |||
| Current | 1.5A(Rated)/ 3.0A(Peak) | |||
| IP rating | IP40 | |||
| Recommended operating environment | 0~40°C，＜85% RH | |||
| International standard compliance | CE，FCC，RoHS，TUV | |||
