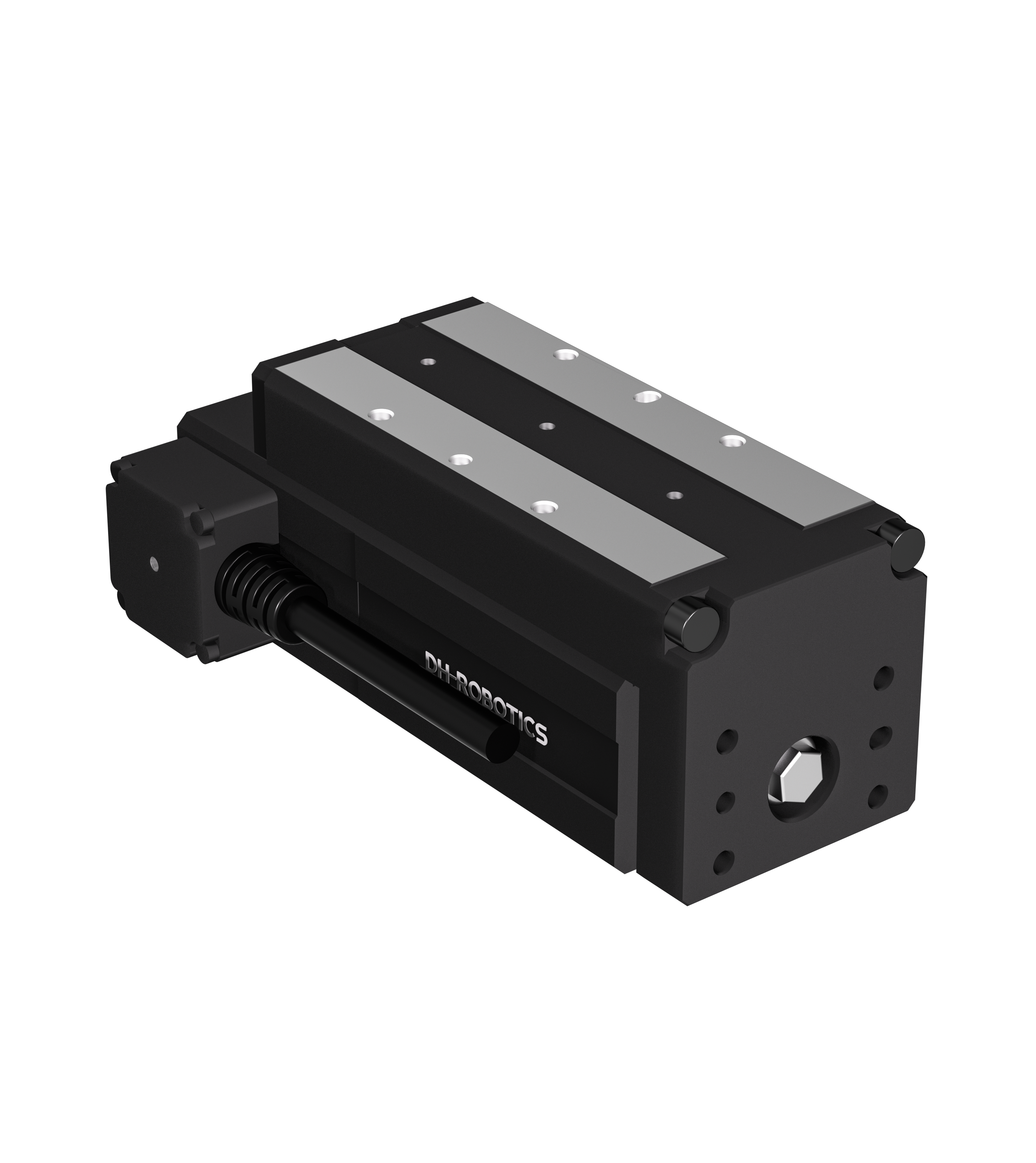

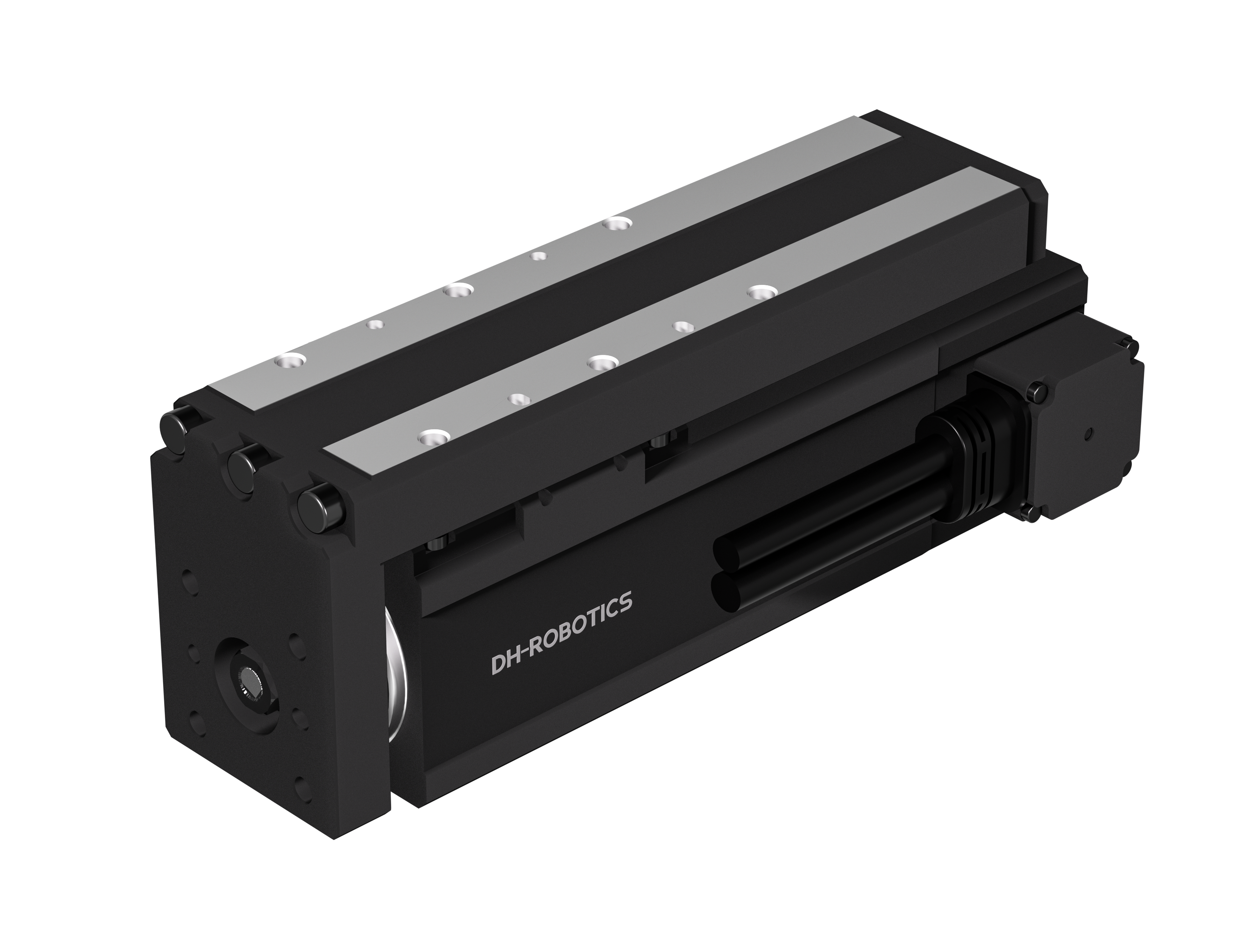

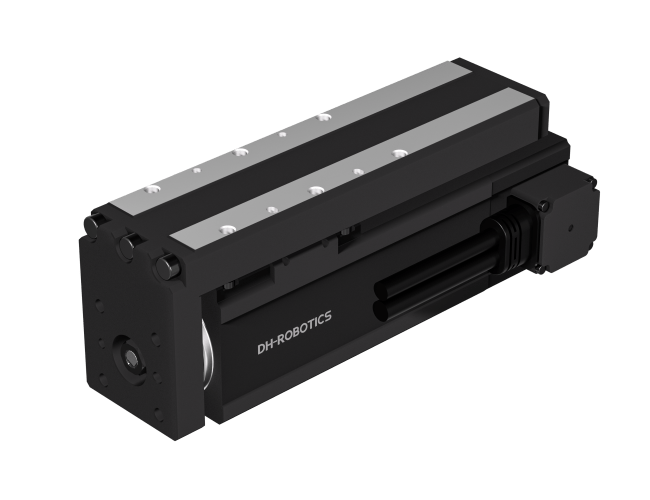

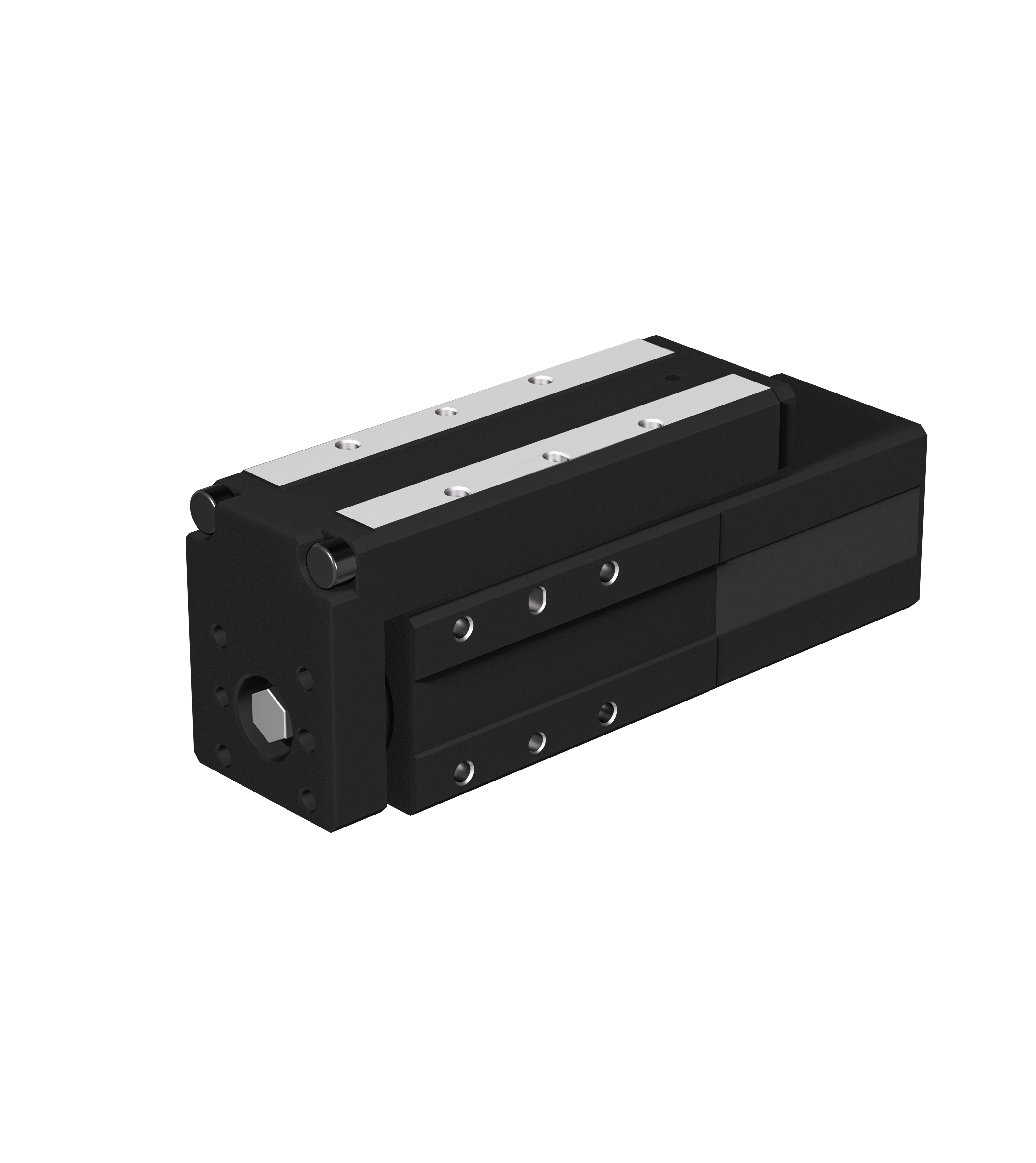

The MCEA series is miniature linear stage cylinder features high energy density, large load capacity, and a compact and exquisite design. It is suitable for various applications, enabling the completion of complex tasks such as handling arranging, and transporting.
Contact Us
Small size, high energy, high rigidity, with a maximum horizontal load capacity of 15kg.
Compact overall structure with a width of only 35mm, allowing for sensitive.
Equipped with a high-performance servo motor and precision grinding screw, achieving a maximum speed of up to 330mm/s. The repeated positioning accuracy reaches 士0.002mm.
The position, speed, and thrust parameters are programmable to implement essential functions of pushing, pulling, pressing, and positioning at high speed. Either the position mode or pushing & pressing mode is available.
| MCEA-3G | MCEA-3WG | MCEA-4G | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
 |  |  |
||||||||
| Total stroke | 30, 50mm | 30, 50mm | 75, 150mm | |||||||
| Screw lead | 1mm | 2mm | 4mm | 6mm | 1mm | 2mm | 4mm | 6mm | 5mm | 10mm |
| Rated thrust | 200N | 100N | 50N | 30N | 200N | 100N | 50N | 30N | 170N | 85N |
| Min. thrust | 78N | 41N | 21N | 12N | 78N | 41N | 21N | 12N | 51N | 25.5N |
| Max. speed | 50mm/s | 100mm/s | 200mm/s | 300mm/s | 50mm/s | 100mm/s | 200mm/s | 300mm/s | 165mm/s | 330mm/s |
| Max. acceleration | 2000mm/s² | 3000mm/s² | 3000mm/s² | 3000mm/s² | 2000mm/s² | 3000mm/s² | 3000mm/s² | 3000mm/s² | 2000mm/s² | 3000mm/s² |
| Max. weight capacity - horizontal | 8kg | 6kg | 3kg | 2kg | 8kg | 6kg | 3kg | 2kg | 15kg | 15kg |
| Max. weight capacity - vertical | 2kg | 1.5kg | 0.75kg | 0.5kg | 2kg | 1.5kg | 0.75kg | 0.5kg | 6kg | 3kg |
| Positioning repeatability | ±0.01mm | ±0.01mm | ±0.02mm | |||||||
| Idle stroke | ＜0.1mm | ＜0.1mm | ＜0.1mm | |||||||
| Weigh | 0.47kg（stroke 30mm） 0.55kg（stroke 50mm） | 0.62kg（stroke 30mm） 0.7kg（stroke 50mm） | 1.4kg (stroke 75mm) 1.6kg (stroke 150mm) |
|||||||
| Communication protocol | External: Depending on the Selected Driver | External: Depending on the Selected Driver | External: Depending on the Selected Driver | |||||||
| Rated voltage | 24 V DC ±10% | 24 V DC ±10% | 24 V DC ±10% | |||||||
| Current | 1.5A(Pated)/3A(Peak) | 1.5A(Pated)/3A(Peak) | 2.5A(Pated)/7A(Peak) | |||||||
| Allowable load moment Mx | 9.9N·m | 9.9N·m | 18.8N·m | |||||||
| Allowable load moment My | 9.9N·m | 9.9N·m | 18.8N·m | |||||||
| Allowable load moment Mz | 3.3N·m | 12.2N·m | 30.5N·m | |||||||
| IP rating | IP40 | IP40 | IP40 | |||||||
| Recommended operating environment | 0~40°C，＜85% RH | 0~40°C，＜85% RH | 0~40°C，＜85% RH | |||||||
| International standard compliance | CE, FCC, RoHS, TUV | CE, FCC, RoHS, TUV | CE, FCC, RoHS, TUV | |||||||
