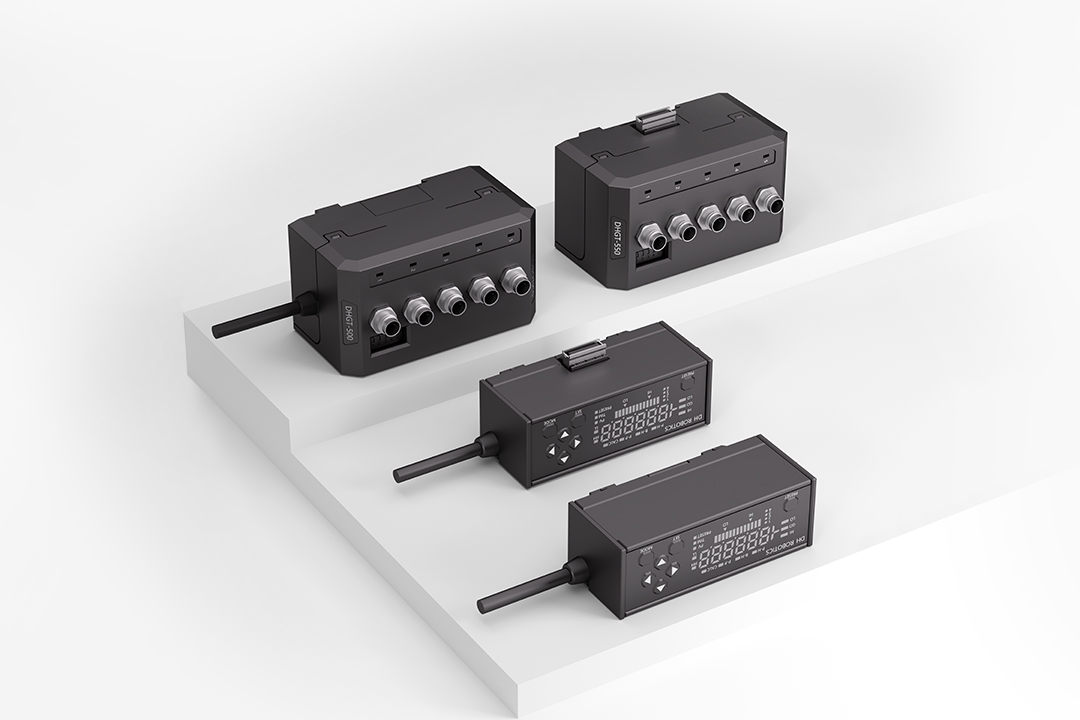

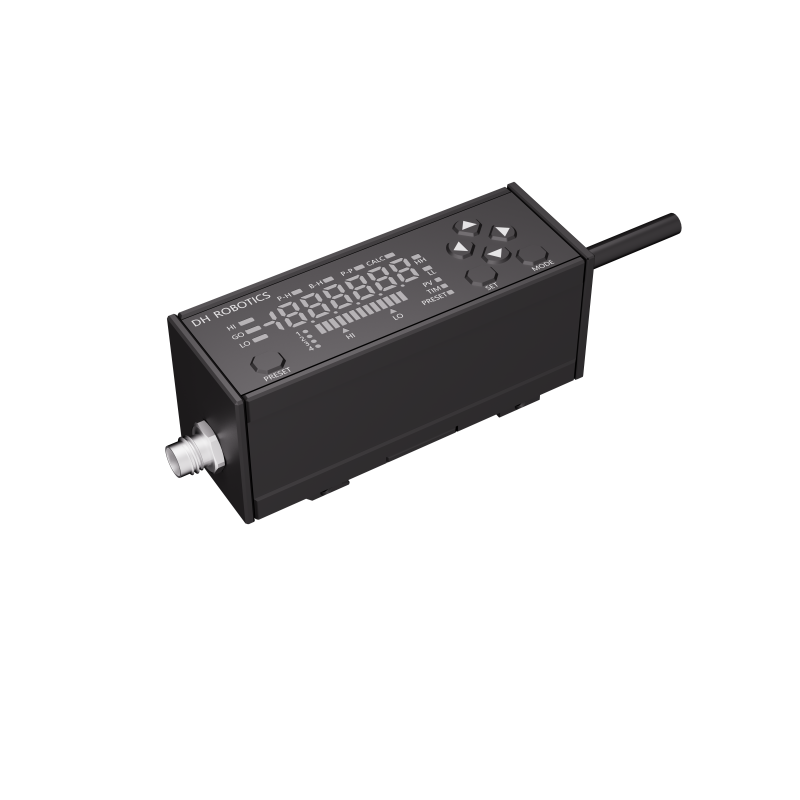

| Module Type | Amplifier Main Module | Amplifier Main Module | Amplifier Main Module | Amplifier Expansion Module | Amplifier Expansion Module | Multi-head Amplifier Main Module | Multi-head Amplifier Main Module |
| Output Type | NPN Output | PNP Output | NPN Output | NPN Output | PNP Output | /① | /① |
| Installation | DIN Rail Mount | DIN Rail Mount | DIN Rail Mount | DIN Rail Mount | DIN Rail Mount | DIN Rail Mount*② | DIN Rail Mount*② |
| Power Supply Voltage | 10–24V, including 10% ripple (P-P), Class 2*① | 20–24V, including 10% ripple (P-P), Class 2 | 20–24V, including 10% ripple (P-P) (powered by main module), Class 2 |
| Power Consumption (Rated) | 840 mW (max 35 mA at 24V) | 4200 mW (max 150 mA at 28V) | 4200 mW (max 150 mA at 28V) |
| Expandable Module Quantity | / | 2 units (DHGT-550) | 2 units (DHGT-550) |
| Display (Measurement Digits / Indicator) | Monochrome bar LED (Red) | / |
| Display Range | -199.999.9 to 199.999.9 | / |
| Display Resolution | 0.1 μm | / |
| Control Input (Timing / Preset / Reset / Channel Input) | No-voltage input | No-voltage input | / |
| Control Output (HH/HI/GO/LO/LL) | NPN Open Collector, max 40V 50mA | PNP Open Collector, max 30V 50mA | NPN Open Collector, max 40V 50mA | NPN Open Collector, max 40V 50mA | PNP Open Collector, max 30V 50mA | / |
| Response Time | hsp(3ms), 5ms, 10ms, 100ms, 500ms, 1000ms; for DHGT-P/PA probe: hsp(12ms), 20ms, 40ms, 400ms, 2000ms, 4000ms | hsp(3ms), 5ms, 10ms, 100ms, 500ms, 1000ms; for DHGT-P/PA probe: hsp(12ms), 20ms, 40ms, 400ms, 2000ms, 4000ms |
| Ambient Temperature | -10 ~ +50°C (No Freezing) | -10 ~ +50°C (No Freezing) |
| Relative Humidity | 35 ~ 85% RH (No Condensation) | 35 ~ 85% RH (No Condensation) |
| Vibration Resistance | 10~55 Hz, 1.5 mm double amplitude, X/Y/Z directions 2 hours each | 10~55 Hz, 1.5 mm double amplitude, X/Y/Z directions 2 hours each | / |
| Material | Housing: ABS+PC; Buttons: ABS; Panel: PET; Cable: PVC | Housing: ABS+PC; Cable: PVC | Housing: ABS+PC; Cable: PVC |
| Weight | approx. 165 g (including 2 m power cable) | approx. 200 g (including 2 m power cable) | approx. 200 g (including 2 m power cable) |
| Notes | ① When adding expansion modules, the following restrictions apply based on connected module quantity: 2–8 modules (including main module): Power supply 20–28 VDC; max control output current 20 mA. 9–15 modules (including main module): Power supply 20–28 VDC; max control output current 10 mA. | *① Signal output requires communication module. *② When connecting expansion and communication modules, ensure DIN rail installation and use end device (DHOP-80201). |
