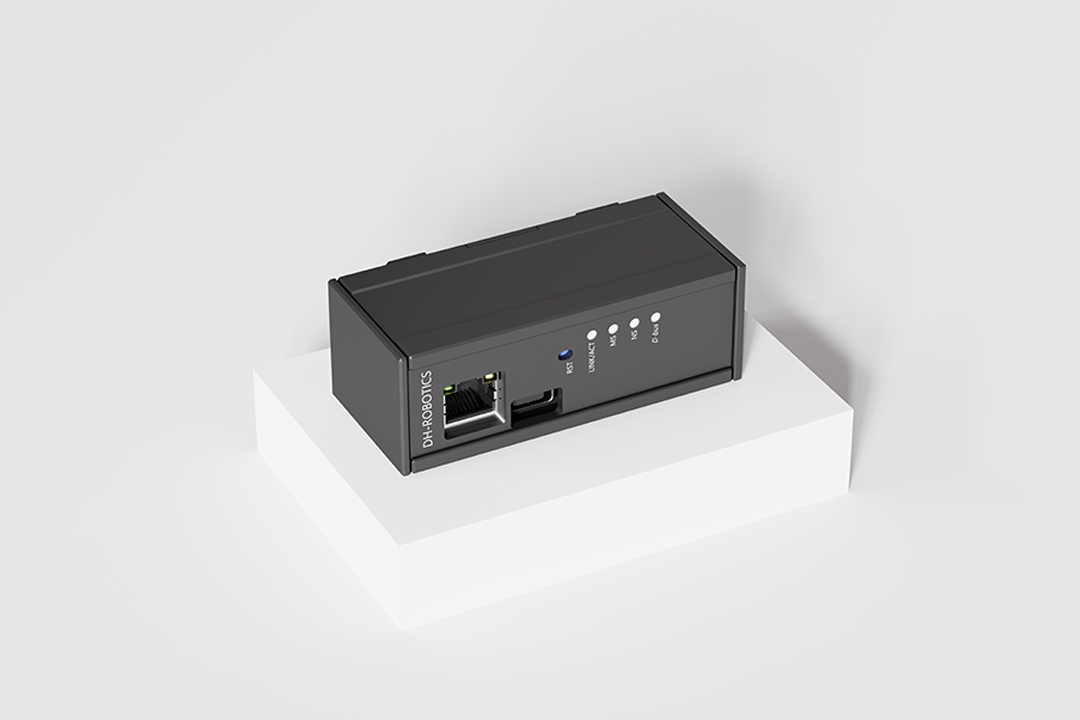

The DHGT-EN1 is a high-performance Ethernet communication module, developed specifically for contact displacement sensors.
It is designed to seamlessly and reliably integrate precision measurement data into various control systems, enabling centralized data acquisition, remote configuration, and real-time monitoring.
Contact Us
A single communication cable allows centralized data acquisition and transmission from multiple sensors. Compared with traditional wiring, it reduces over 90% of cabling, significantly lowering wiring costs and complexity, while reducing potential points of failure.
Supports standard Ethernet communication with no special drivers or complex configuration required, enabling seamless connection with most Ethernet-capable PLCs, HMIs, and upper-level control systems, greatly shortening project integration time.
Enables networked, digital transmission of sensor measurement data, preventing attenuation and interference caused by long-distance analog signals. Supports millisecond-level communication cycles to meet industrial real-time data acquisition and monitoring requirements.
The module features an ABS+PC industrial-grade housing, weighs approximately 50 g, supports an operating temperature range of -10°C to +50°C, and offers good vibration resistance for long-term stable operation in industrial environments.
| Parameter | DHGT-EN1 |
|---|---|
| Communication Type | Ethernet TCP/IP |
| Installation Method | DIN rail mounting |
| Power Supply Voltage | 24 V, including 10% ripple (P-P) (supplied by the connected sensor amplifier) |
| Power Consumption | Max. 1400 mW (max. 50 mA at 28 V) |
| Performance Specification (Socket Communication / No-protocol Command ASCII) | TCP socket: Port number can be set within the range of 1 to 65535 |
| Performance Specification (Compliance Standard) | IEEE 802.3u (100BASE-TX) |
| Performance Specification (Transmission Speed) | 100 Mbps (100BASE-TX) |
| Performance Specification (Transmission Medium) | STP or UTP Category 5 or higher (100BASE-TX) |
| Performance Specification (Maximum Cable Length) | 100 m (distance between this product and the Ethernet switch) |
| Amplifier Specification (Connectable Amplifier) | DHGT Series |
| Amplifier Specification (Maximum Number of Units) | Up to 15 units |
| Indicator Specification | Link/Activity Indicator (LINK/ACT): Green LED; Module Status Indicator (MS): Green/Red dual-color LED; Network Status Indicator (NS): Green/Red dual-color LED; Sensor Communication Indicator: Green/Red dual-color LED |
| Ambient Temperature | -10 to +50°C (no freezing) |
| Relative Humidity | 35 to 85% RH (no condensation) |
| Vibration Resistance | 10 to 55 Hz, 1.5 mm double amplitude, 2 hours each in X, Y, Z directions |
| Material | Housing: ABS+PC; Buttons: ABS; Panel: PET; Cable: PVC |
| Weight | Approx. 50 g |
