RCE Series

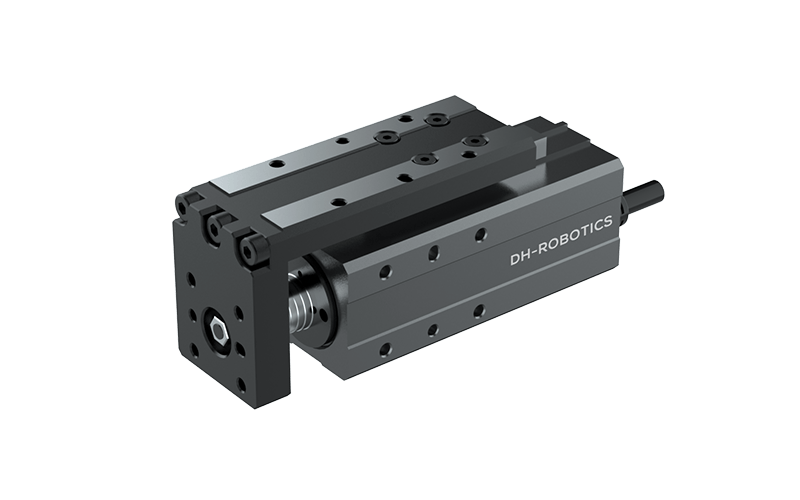

The RCE series is a micro-sized rod-type electric cylinder developed and manufactured by DH-Robotics. It offers users an efficient linear motion solution with its compact size and excellent performance.
Contact Us
The RCE series is a micro-sized rod-type electric cylinder developed and manufactured by DH-Robotics. It offers users an efficient linear motion solution with its compact size and excellent performance.
Contact Us
High Rigidity and Load Capacity: Featuring a high rigidity structural design and high-performance linear guide, the servo cylinder supports a maximum horizontal load of 8kg, surpassing similar products in the market.
The servo cylinder offers versatile motion modes, including position and push-pull modes. Users have the flexibility to adjust parameters such as position, speed, and thrust to meet various requirements for high-speed pushing, pulling, pressing, and precise positioning.
Equipped with a high-performance servo motor and precision ball screw, the servo cylinder delivers fast and efficient motion performance. It achieves a maximum speed of 1000mm/s and a maximum acceleration of 3000mm/s², significantly enhancing work efficiency.
| RCE-3M | RCE-5 | ||||||
|---|---|---|---|---|---|---|---|
 |  |
||||||
| Width | 35mm | 45 mm | |||||
| Total stroke | 30，50mm | 100-800 mm(50 pitch) | |||||
| Screw | 1mm | 2mm | 4mm | 6mm | 5 mm | 10 mm | 20 mm |
| Rated thrust | 200N | 100N | 50N | 30N | 320 N | 160 N | 80 N |
| Min. thrust | 60N | 30N | 15N | 9N | 96 N | 48 N | 24 N |
| Max. speed | 50mm/s | 100mm/s | 200mm/s | 300mm/s | 250 mm/s | 500 mm/s | 1000 mm/s |
| Max. acceleration | 2000mm/s² | 3000mm/s² | 3000mm/s² | 3000mm/s² | \ | ||
| Max. weight capacity - horizontal | 8kg | 6kg | 3kg | 2kg | 35 kg | 25 kg | 15 kg |
| Max. weight capacity - vertical | 2kg | 1.5kg | 0.75kg | 0.5kg | 10 kg | 5 kg | 2.5 kg |
| Positioning repeatability | ±0.02(Ball screw) ±0.005(Grinding screw rod) | ±0.02(Ball screw) ±0.005(Grinding screw rod) |
|||||
| Idle stroke | Below 0.1 | Below 0.1 | |||||
| Rod Diameter | \ | φ22mm | |||||
| Weigh | 0.47kg（stroke 30mm） 0.55kg（stroke 50mm） | \ | |||||
| Communication interface | Built-in: 485+4-way I/O（NPN） External: External Controller Decision | External Controller Decision | |||||
| Rated voltage | 24 V DC ±10% | 24 V DC ±10% | |||||
| Current | 1.5A(Rated)/ 3.0A(Peak) | 4.5A(Rated)/ 13.5A(Peak) | |||||
| Rated Power | 36W | 100W | |||||
| IP rating | IP40 | IP40 | |||||
| Recommended operating environment | 0~40°C，＜85% RH | 0~40°C，＜85% RH | |||||
| International standard compliance | CE，FCC，RoHS | CE，FCC，RoHS | |||||
